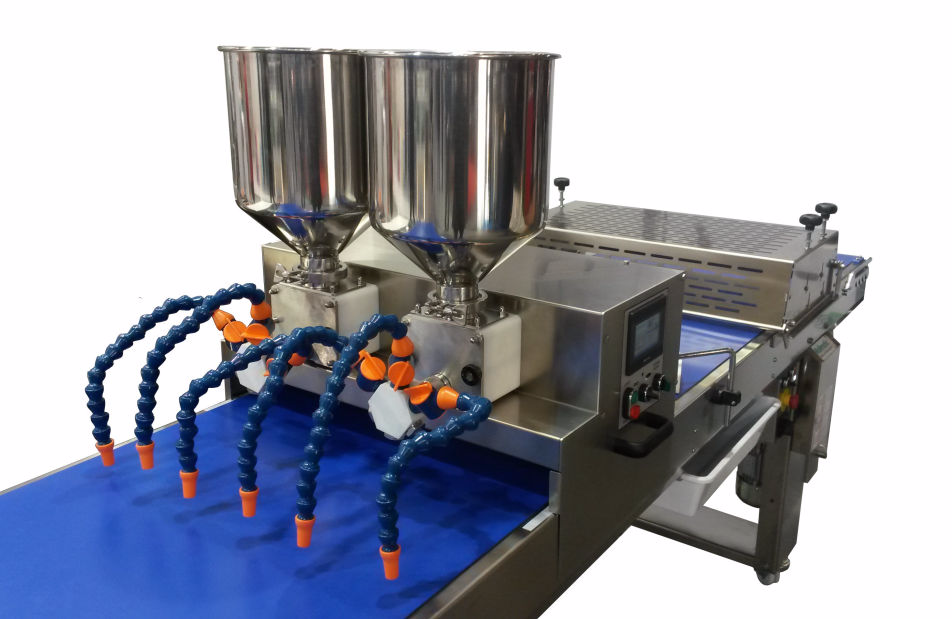

Gear dosing machine
COMBI LINE

Gear dosing machine COMBI LINE  was designed to be used on work tables or confectionary lines to dose fillings (jams, creams, chocolate paste etc.) on the previously laminated dough. It can be also used to dose dough for muffins or other liquid dough into paper cup trays or metal trays with molds.
The structure is realized in stainless steel AISI 304. The machine is equipped with 2 dosing units with gears. Optional lobes can be installed to dose fillings with inclusions like raisins, cherry, candied fruit, nuts, chocolate chips etc.  Hexagonal manifolds mounted on the dosing units allow to use up to 12 flexible hoses with in-line sfere valves. The dosing units and hoses can be easily removed for cleaning.
The two hoppers have the capacity of 15 liters each.
The machine can work in three dosing modes: fixed dosing with conveyor belt stopped, stripe dosing without stopping the conveyor belt (the lenght of the stripes can be programmed), continuos dosing without stopping the conveyor belt.
Easy to use touch screen panel allows to memorise up to 7 programms setting dosing speed, time and vacuum for each mode of use.


TECHNICAL DETAILS
Voltage 230 V / 1 / 50-60 Hz
Power 0,4 kWt
Weight 55 kg
Dimensions 786х500х740h mm
